32-490 Class 40 Diesel 40063 BR Blue
32-490 Class 40 Diesel 40063 BR Blue
Bachmann

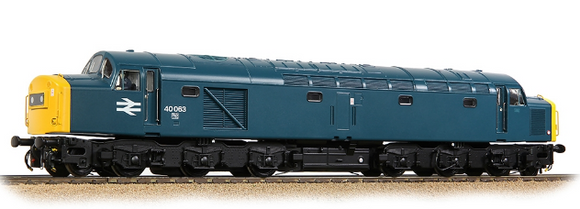

The Class 40 Diesel Locomotive has long been a highlight of the Bachmann Branchline OO scale fleet, and for 2023 this popular model has been upgraded to bring you more features than ever before. New tooling has also been produced and is employed here to depict this Scottish Region locomotive which has seen its headcode discs and communication doors replaced with central headcode panels. The distinguishing features of these Scottish locos – their square-cornered headcode boxes, the lack of handrails around the headcode boxes and the uneven bottom to the nose – are all present and correct on this model of No. 40063 which carries BR Blue livery.
With the DCC decoder interface upgraded to Plux22; new lighting features and enhanced speaker arrangements have also been employed on the Class 40 to enhance the operating experience. On track the model has a mighty presence, just like the real locomotives and, with its five pole, twin flywheel motor powering all six driving wheels, you can be sure of a performance to match too. This Class 40’s good looks are enriched by the superb livery application using true-to-prototype colours, fonts and logos to produce a model fit for any collection.
- Bachmann Branchline OO Scale
- Era 7
- Pristine BR Blue livery
- Running No. 40063
- Equipped with a Plux22 DCC Decoder Socket – recommended Decoder item No. 36-570A
- Length 285mm
DETAIL VARIATIONS SPECIFIC TO THIS MODEL
- Central Headcode Panels (Scottish Region type) – Glazed displaying ‘Dominos’
- Nose-Top Handrails
- Nose-Corner Handrails
- Clayton Boiler Port on Roof with Blank Fitted
- Cantrail Grilles Arranged as appropriate to a locomotive with a Clayton Boiler
- Square Boiler Access Panel
- Fitted with Dual Brakes (Air Pipes fitted)
BACHMANN BRANCHLINE CLASS 40 SPECIFICATION
MECHANISM:
- Five pole, twin shaft motor with two flywheels providing drive to both bogies
- Authentic 1Co-Co1 drive arrangement with six axle drive
- Electrical pickup from all twelve driving wheels
- Separate metal bearings fitted to each driven axle
- Gearing arranged for prototypical running speeds and haulage capabilities
- 16.5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
- NEM coupling pockets to NEM362 standards integrated into each bogie
- Designed to operate on curves of second radius (438mm) or greater
DETAILING:
- Bogies fitted with separate steps and sandboxes
- Rotating radiator fan (un-motorised)
- Separately applied metal detail parts, including grab handles, sand pipes and etched fan grilles
- Sprung buffers
- Pre-fitted driver in one cab
- Each model is pre-fitted with a full set of decorated, model-specific buffer beam pipework and accessory parts
LIGHTING:
- Directional lighting, including headlights and high intensity headlights where applicable, switchable on/off at either end on DCC or Analogue control
- Cab lighting*, assigned to two DCC functions for separate switching of each
- Authentic light colours and temperatures selected for each model based on era and application
DCC:
- Plux22 DCC decoder interface
